Vanadium Electrolyte Conditioning Unit
Vanadium electrolyte serves as the core component of all-vanadium redox flow batteries. The dominant industrial routes are chemical reduction-electrolysis and short-process electrolysis. Both rely on electrolysis to reduce tetravalent vanadium electrolyte into standard 3.5-valence electrolyte.
To address the drawbacks of conventional electrolysis solutions and the market monopoly of existing conditioning equipment, our self-developed vanadium electrolyte electrolytic conditioning unit features compact footprint, high throughput and superior current efficiency. It substantially cuts capital expenditure and supports sound development of the vanadium battery industry.
To cater to diverse scenarios and customer requirements, we offer three product options: standalone core electrolytic cells, containerized integrated units (equipped with electrolytic cells and electrical systems), and turnkey complete electrolysis systems with an annual capacity of 5000 m³. In addition, modular electrolysis systems of various specifications can be customized according to production capacity demands.
▲ Core Electrolytic Cell / Containerized Unit / Complete Electrolysis System

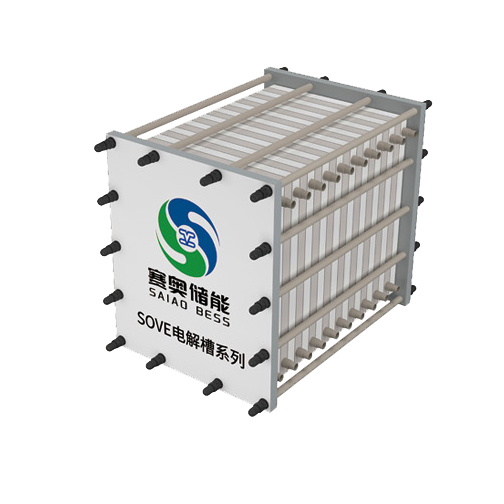

- Core Electrolytic Cell: Consists of core components including electrode plates and membrane.

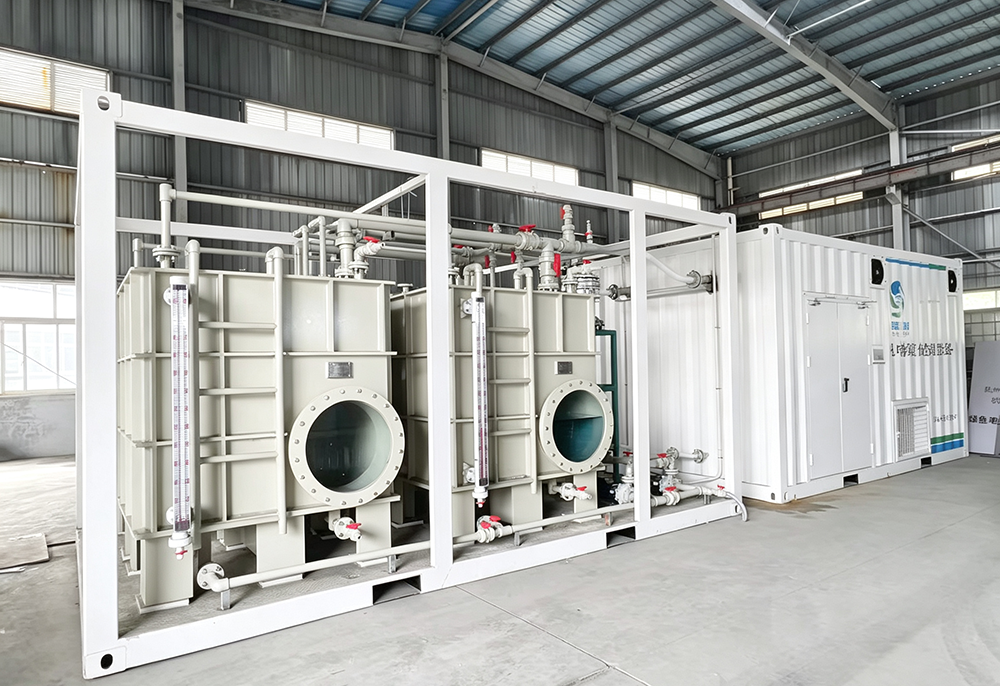

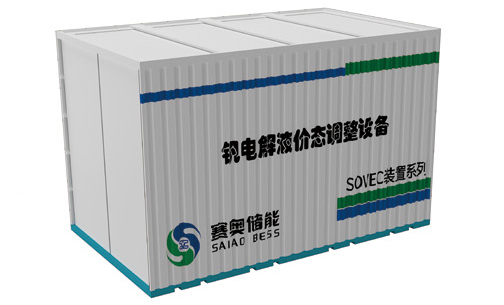

- Containerized Unit: Equipped with core electrolytic cell, rectifier and electrical system, with a footprint of 15 m².

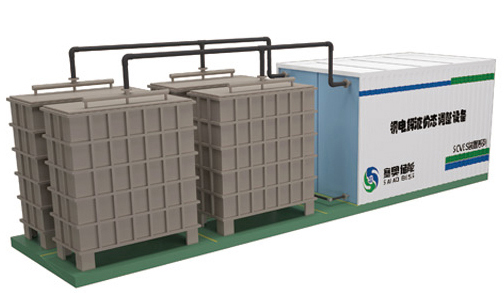

- 5000 m³/Year Vanadium Electrolyte Conditioning System: Comprises containerized unit, storage tanks, heat exchangers, pipelines and other components, with a core footprint of 36 m².
- Compact footprint of core equipment: The electrolytic cell matching the 5000 m³/year production line occupies only about 1 m².
- The electrolysis system is delivered as a pre-assembled unit for immediate commissioning, eliminating on-site complex installation.
- Consumption of precious metals is controllable. The equipment price is far below the market level with low after-sales maintenance cost.
- High space-time yield with current efficiency exceeding 95%.
- Vanadium electrolyte manufacturers
- Enterprises in urgent need of vanadium electrolyte valence restoration
Hangzhou Saiao Energy Storage Equipment Co., Ltd.
Hangzhou Saiao Energy Storage Equipment Co., Ltd. focuses on the R&D, production and technical services of vanadium electrolyte-related technologies and equipment. Its business scope includes supply and leasing of vanadium electrolyte valence conditioning equipment, as well as O&M services for valence-unbalanced electrolyte. Meanwhile, it commits to innovative R&D of mixed-acid electrolyte routes and on-line electrolyte monitoring devices, actively promoting technological innovation and industrial upgrading in the energy storage sector.
Jointly with Carbon Energy Environment and the Institute of Future Technology, Zhejiang University of Technology, Saiao Energy Storage has built a 200 ㎡ pilot base and a 500 ㎡ production base to fully support the development of vanadium electrolyte projects. After 18 months of R&D and testing, stable-operated vanadium electrolyte conditioning electrolytic cells, containerized units and 5000 m³/year electrolysis systems have been successfully developed.

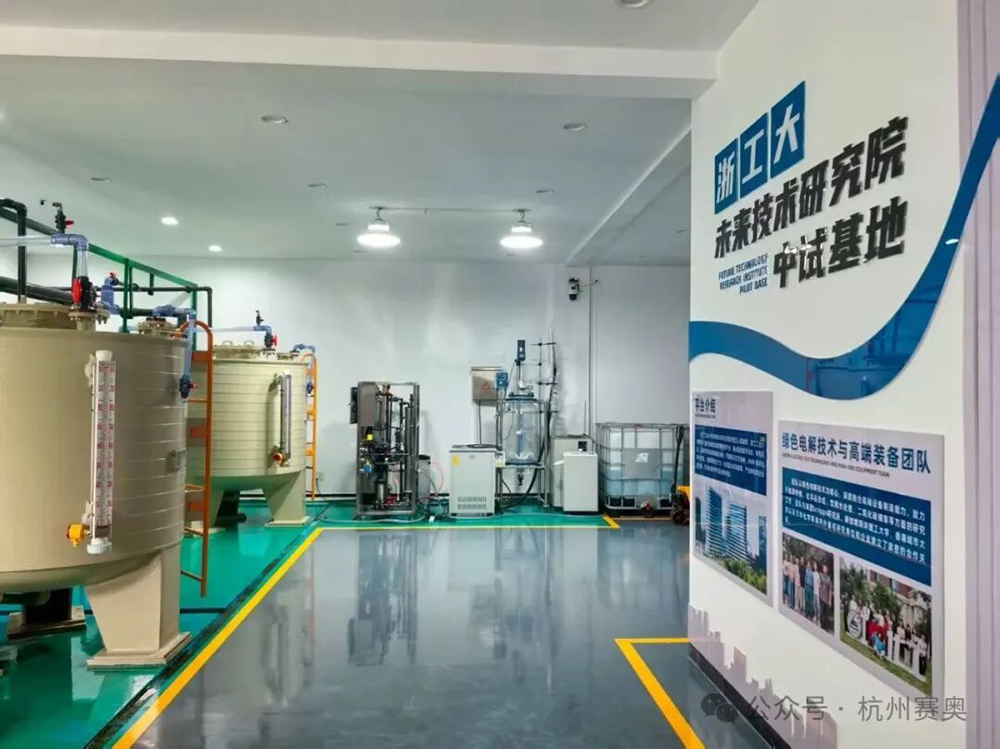

▲ Pilot Base

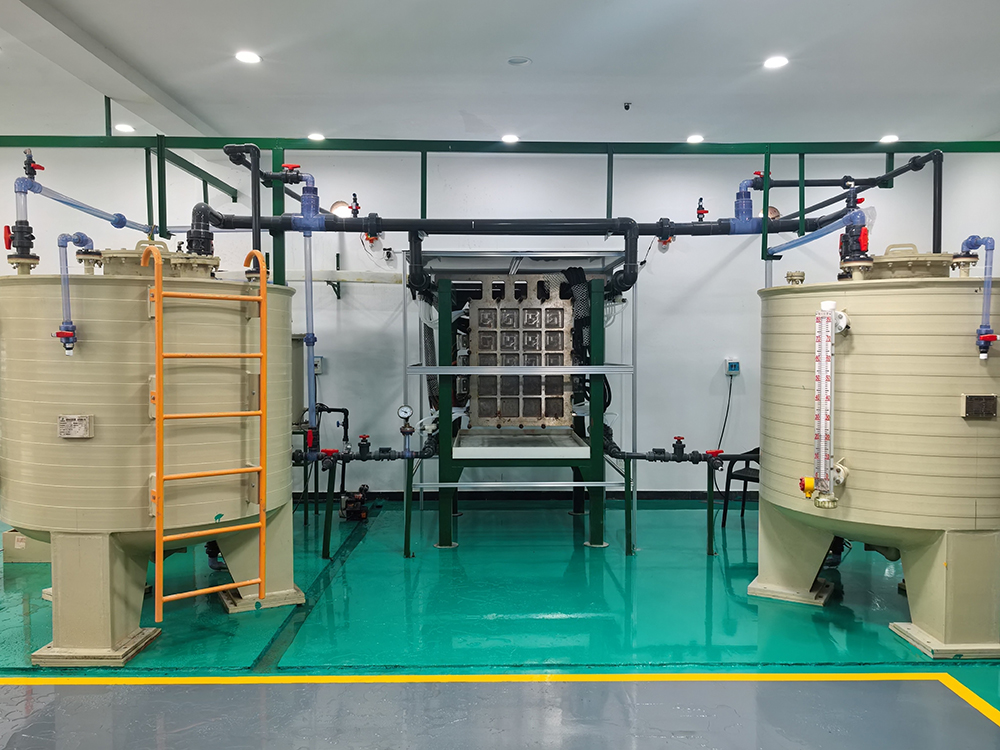

▲ 5000m3/Year Electrolysis System

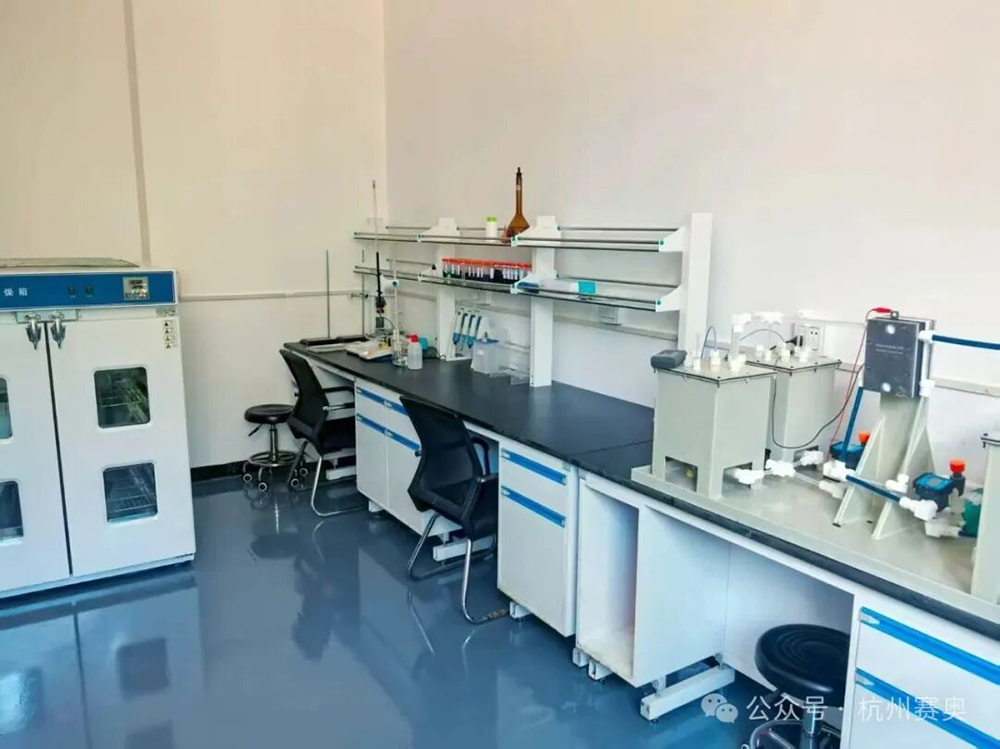

▲ Material Preparation & Testing Laboratory
▲ 5000m3/Year Electrolysis System
For more information, please feel free to contact us~
