Application Fields
Indirect electrochemical systems, electrochemical water treatment, and conventional electrochemical organic/inorganic synthesis systems.
Product Features

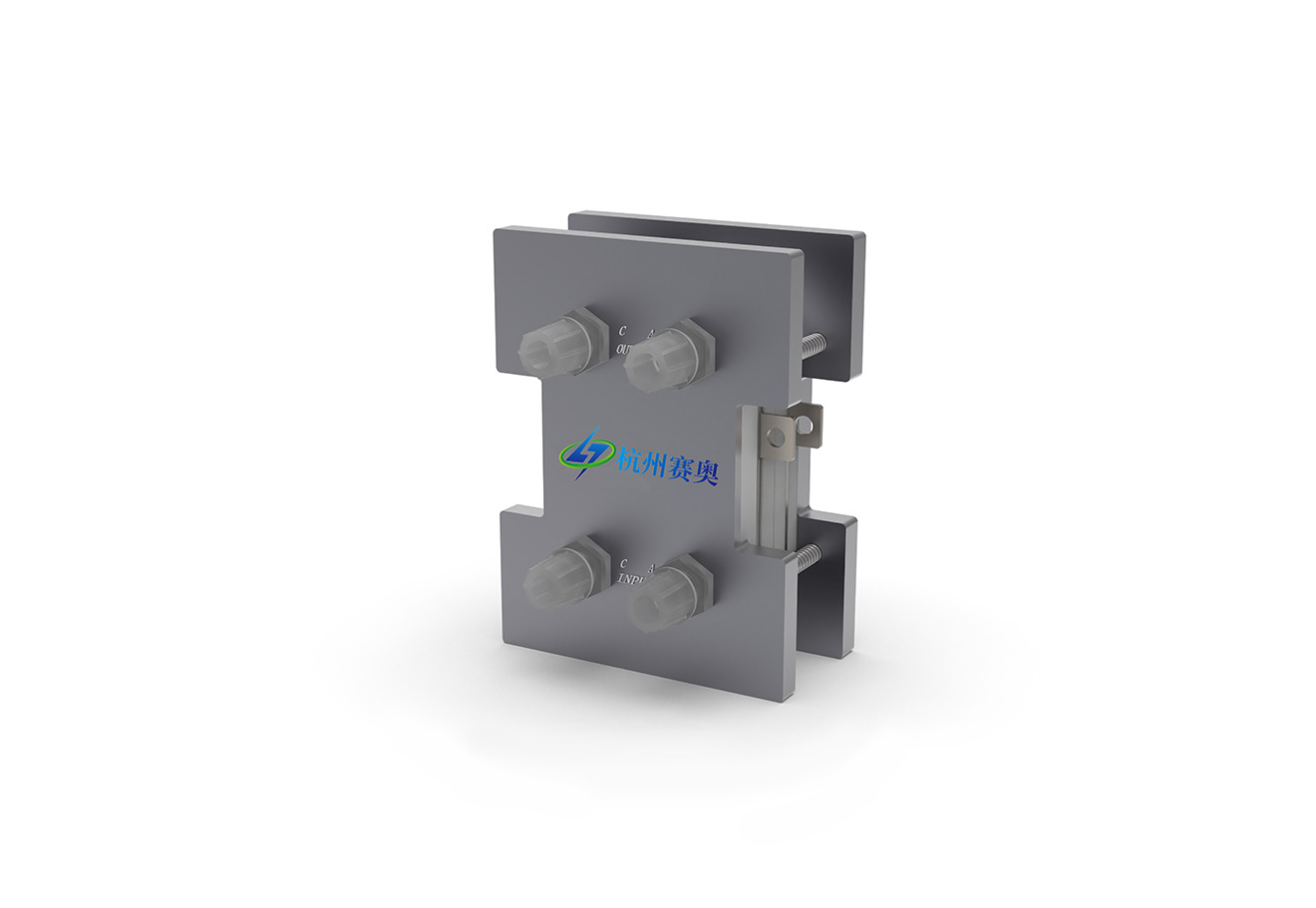

- The electrode can be flat electrode or three-dimensional electrode, such as carbon felt and RVC electrode.
- The liquid flows through the interior of the 3D electrode instead of gaps between frame walls, giving full play to the high specific surface area of porous electrodes.
- No obvious dead volume during reaction; gas bubbles can be easily discharged.
- The required concentration of mediator metal can be greatly reduced in indirect electrochemical reaction systems.
Product Specifications
| Item | Parameter |
|---|
| Electrode Dimensions | 12 cm × 12 cm × 5 cm |
| Electrode Materials | Carbon felt / RVC / carbon paper / graphite / copper / nickel |
| Effective Electrode Area | 13.5 cm² (calculated based on flat electrode) |
| Chamber Solution Volume | 6.75 mL |
