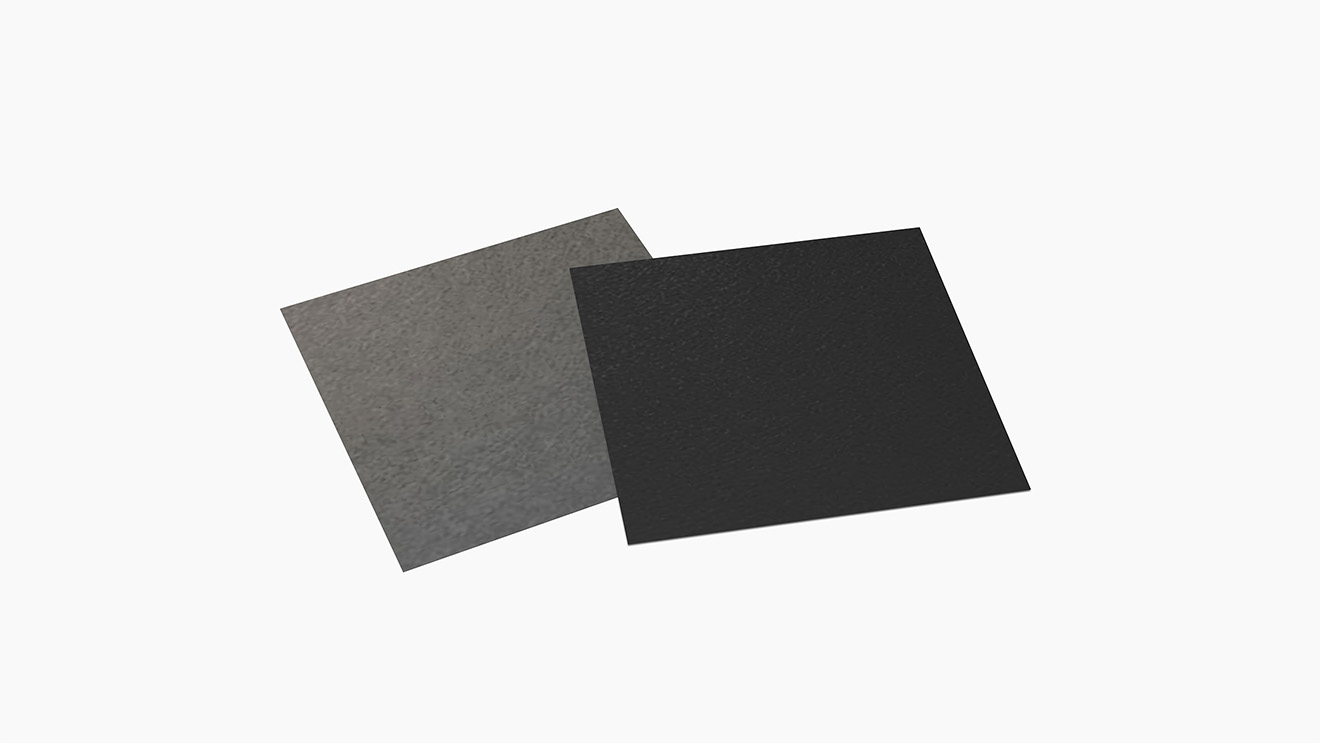

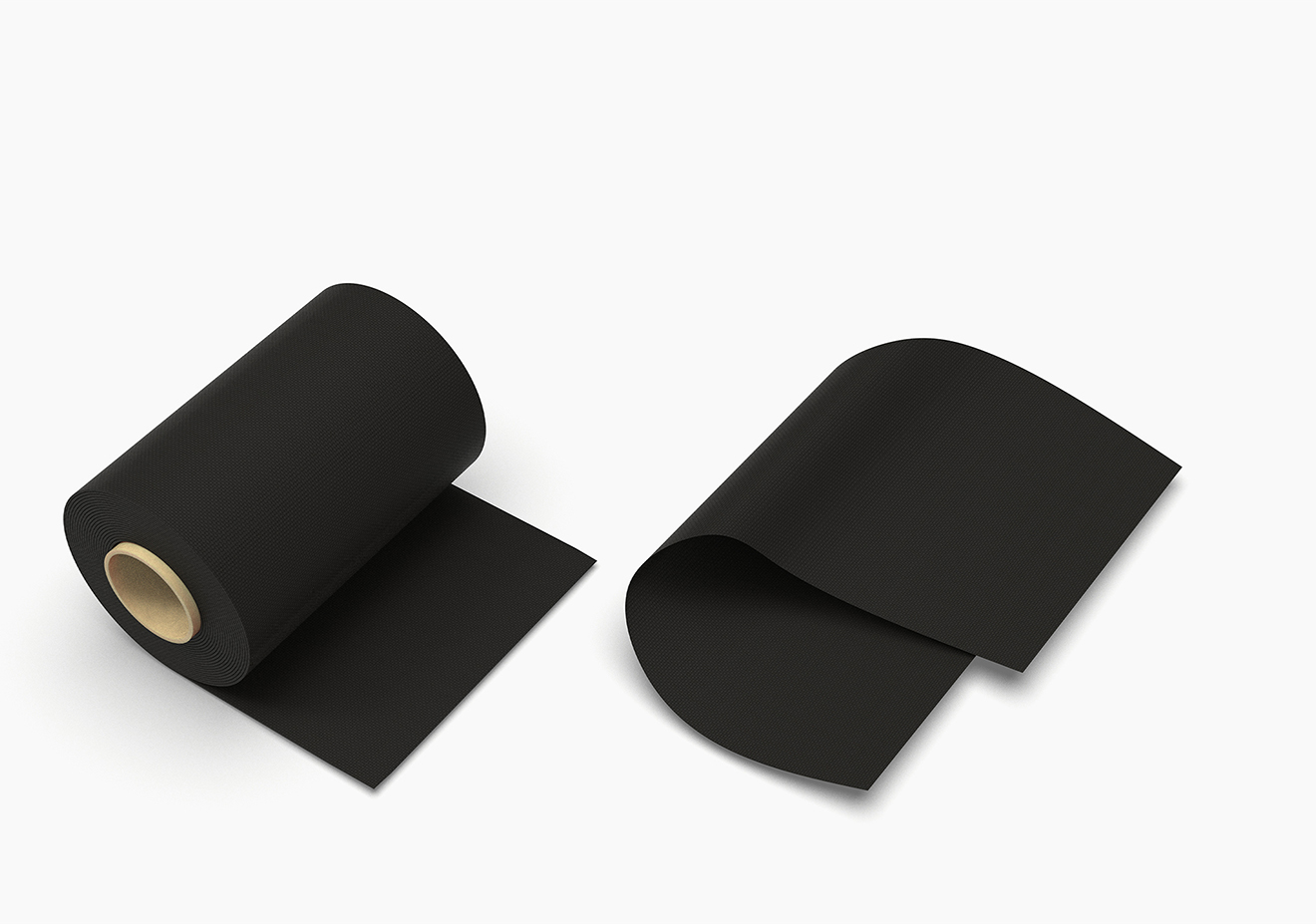

Toray carbon paper from Japan is a porous C/C composite material manufactured via high-temperature thermal treatment (carbon fiber-carbon composite). Thanks to its outstanding comprehensive properties, it is widely adopted as electrode substrates for fuel cells and other electrode applications. Our company supplies three types of carbon paper: hydrophilic type, hydrophobic type, and hydrophobic type with microporous layers, compatible with various electrochemical systems.
Specifications
Model: TGP-H-060
Thickness: 0.19 ± 0.01 mm
Size: 25 cm × 25 cm
Porosity: 78%
Bulk density: 0.44 g/cm³
Surface fiber diameter: 9 μm
Flexural strength: 40 MPa
