DSA electrode

TA2 Substrate Electrode with Precious Metal Coating
Custom coated electrodes available based on target current density and service life requirements

Online Consultation

Product Introduction

Dimensionally Stable Anode (DSA) electrodes feature outstanding corrosion resistance and high electrochemical selectivity of catalytic coatings, delivering multiple advantages over conventional anodes.

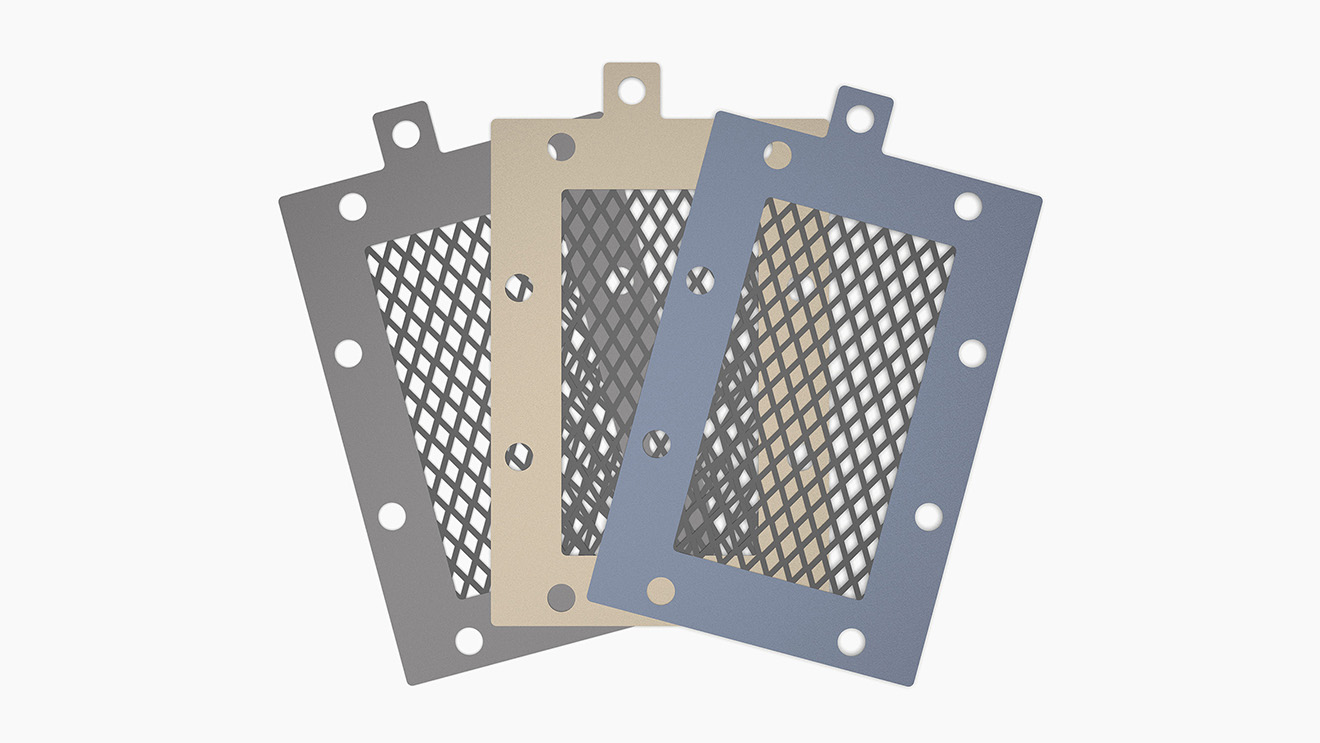

The overall dimension of the DSA electrode is 180 × 120 mm, with a mesh catalytic coating in the center featuring an effective area of 130 × 70 mm. This structure facilitates gas diffusion generated on the electrode surface and enhances mass transfer of electrolyte.

DSA Electrode Specifications

Model	Catalytic Coating Composition	Application Scenarios
HZC-1041	Lead dioxide coated titanium	Systems requiring high oxygen evolution potential
HZC-1042	Ruthenium oxide coated titanium	Chlorine evolution systems
HZC-1043	Iridium oxide coated titanium	Low oxygen consumption systems
HZC-1044	Platinum coated titanium	Systems requiring low oxygen evolution potential
HZC-1045	Pure titanium	Counter electrode
