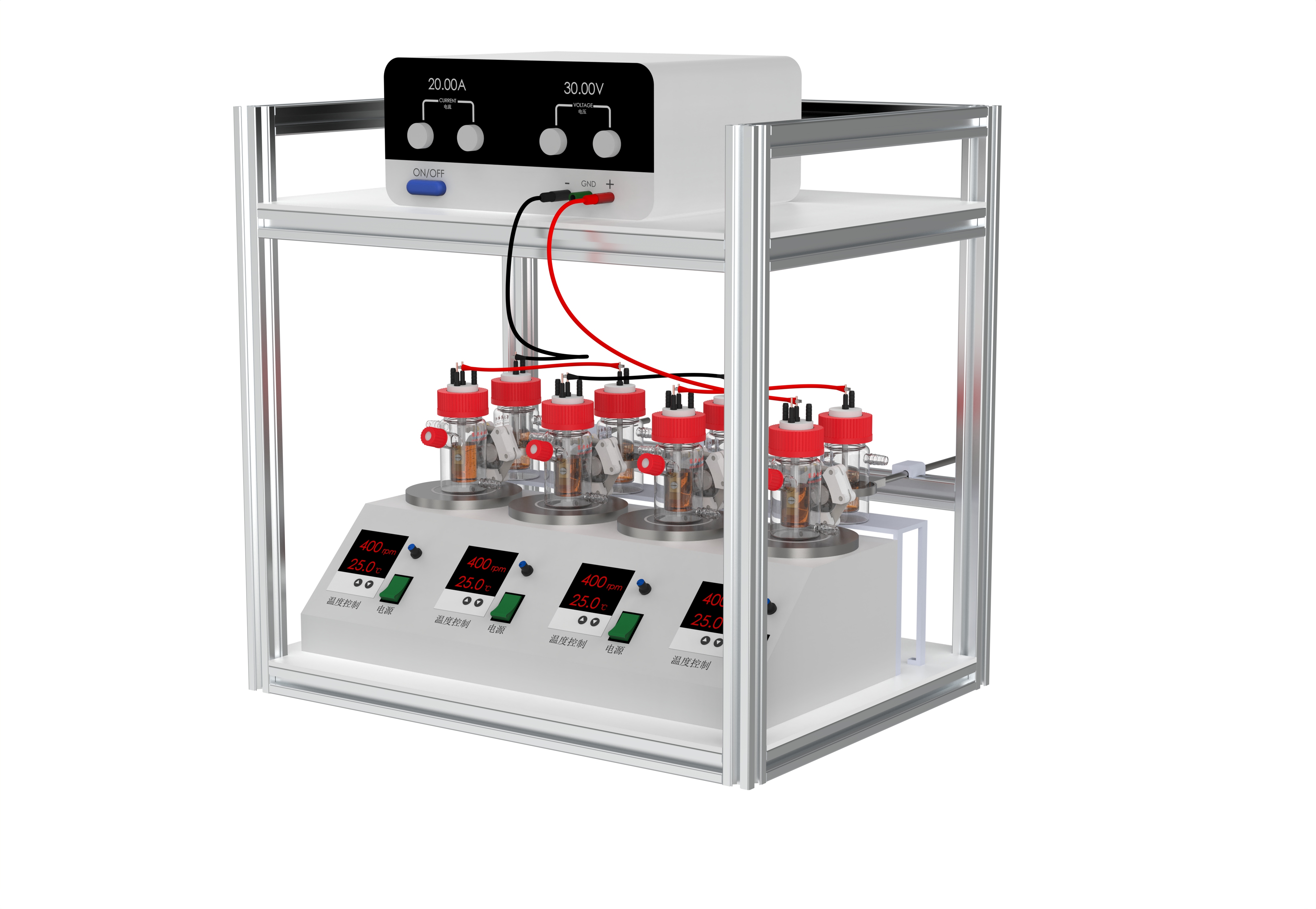

(HZC-MCR-4)Multi-channel electrolysis condition optimization device

Core Advantages

• Independent 4-channel operation: Simultaneous tests across 4 electrolytic cells for batch screening with high data comparability
• Integrated temperature & stirring control: Independent water bath temperature control for anode and cathode chambers; magnetic stirring for uniform mass transfer
• Flexible series/parallel switching: Adaptable to the development of diverse electrolytic processes
• Optional sealed/open configuration: Compatible with gas-generating reaction systems for enhanced operational safety

Typical Application Scenarios

• Rapid screening of electrolytic reaction parameters
• Multi-group parallel comparative experiments
• Process optimization tests for series/parallel electrolytic workflows
• Multi-functional electrolysis platform with temperature and stirring regulation

Quick Product Specifications

• 4-channel H-type electrolytic cells: 50 mL × 4, independent temperature control for anode and cathode compartments
• Four-channel DC power supply: 15 V/2 A × 4 (optional configuration)
• 4-position magnetic stirrer: Temperature range: RT~99.9 ℃; stirring volume: 0~1000 mL

• Aluminum alloy frame: Integrated 3030 profile structure with dedicated mounting clamps

•
