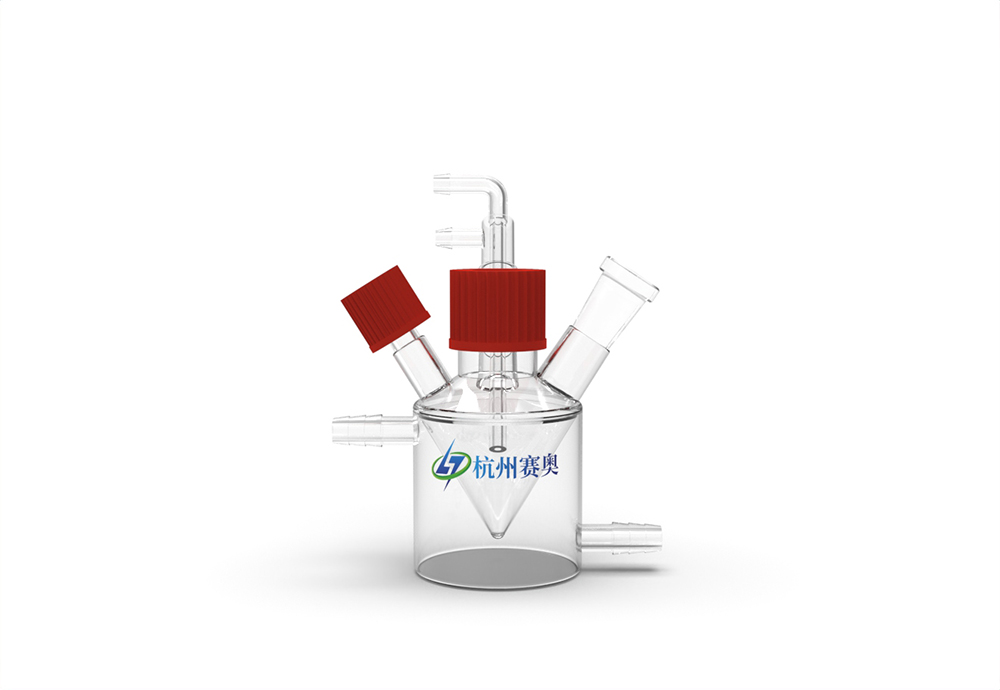

During the experiment of the electrolytic cell, the capacity of the workshop is ~5ml, and the auxiliary chamber of the continuous tube is inserted in the workshop, with the capacity of ~3ml (specific measurement is required), and the diameter of the diaphragm channel is ~0.5cm. Can realize constant temperature water accurate temperature control; The mouth of the electrolytic cell is tightly closed with good air tightness and can bear pressure of 1.5 ATM.

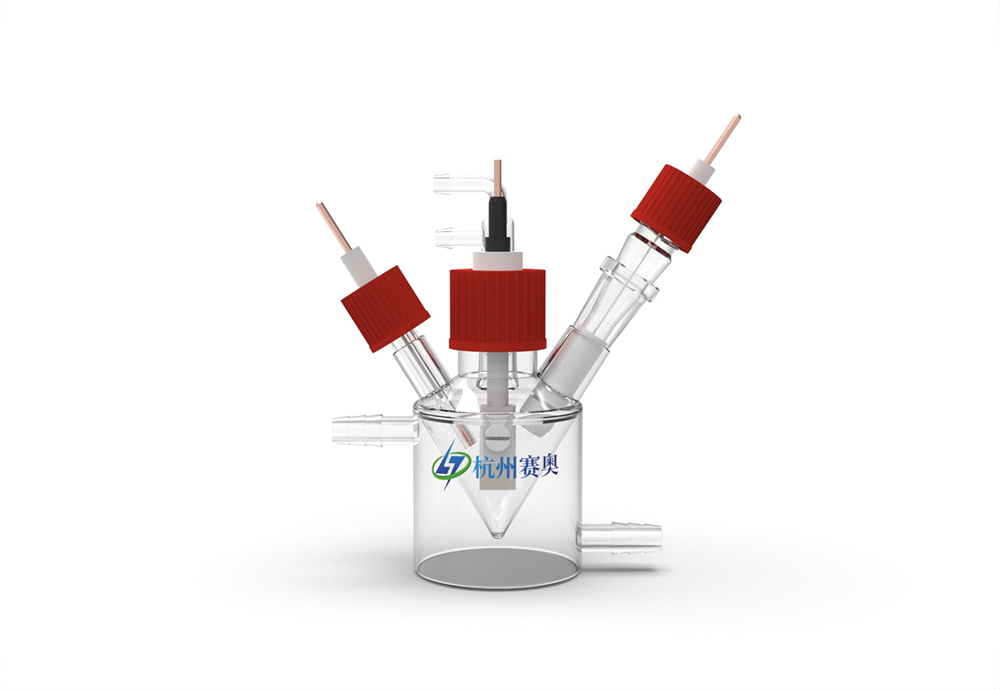

The electrolytic cell is equipped with 1 platinum wire electrode clip, 1 AgCl reference electrode, 1 platinum wire electrode, 1 air exchange glass catheter, 3 sets of electrode tightening sleeve cover, and 1 set of aluminum alloy fixing bracket. It can also be used as a microdiaphragm testing tank. Application scenarios include micro organic synthesis, lithium battery testing, etc.
Product features
(1) The inside of the test tank is sealed and air replacement can be carried out;
(2) The electrode material is easy to replace;
(3) Accurate temperature control can be achieved through constant temperature water bath.
Product parameters
Name | Parameter |
Working electrode | Platinum wire electrode clip+electrode material |
Counter electrode | Platinum wire electrode |
Reference electrode | Ag/AgCl |
Test liquid volume | 5-25mL |
