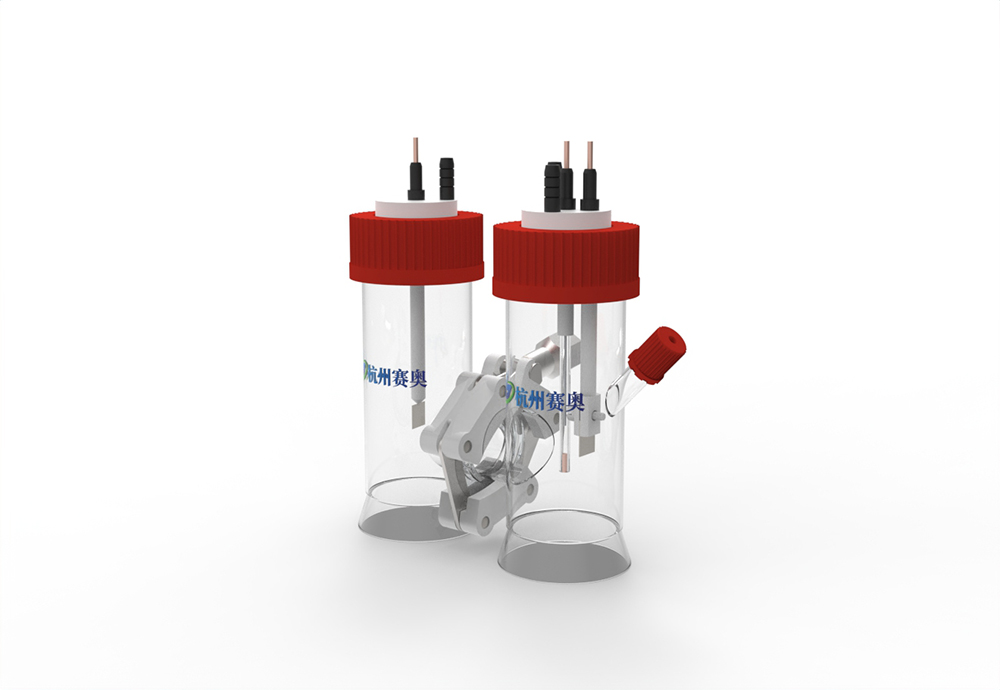

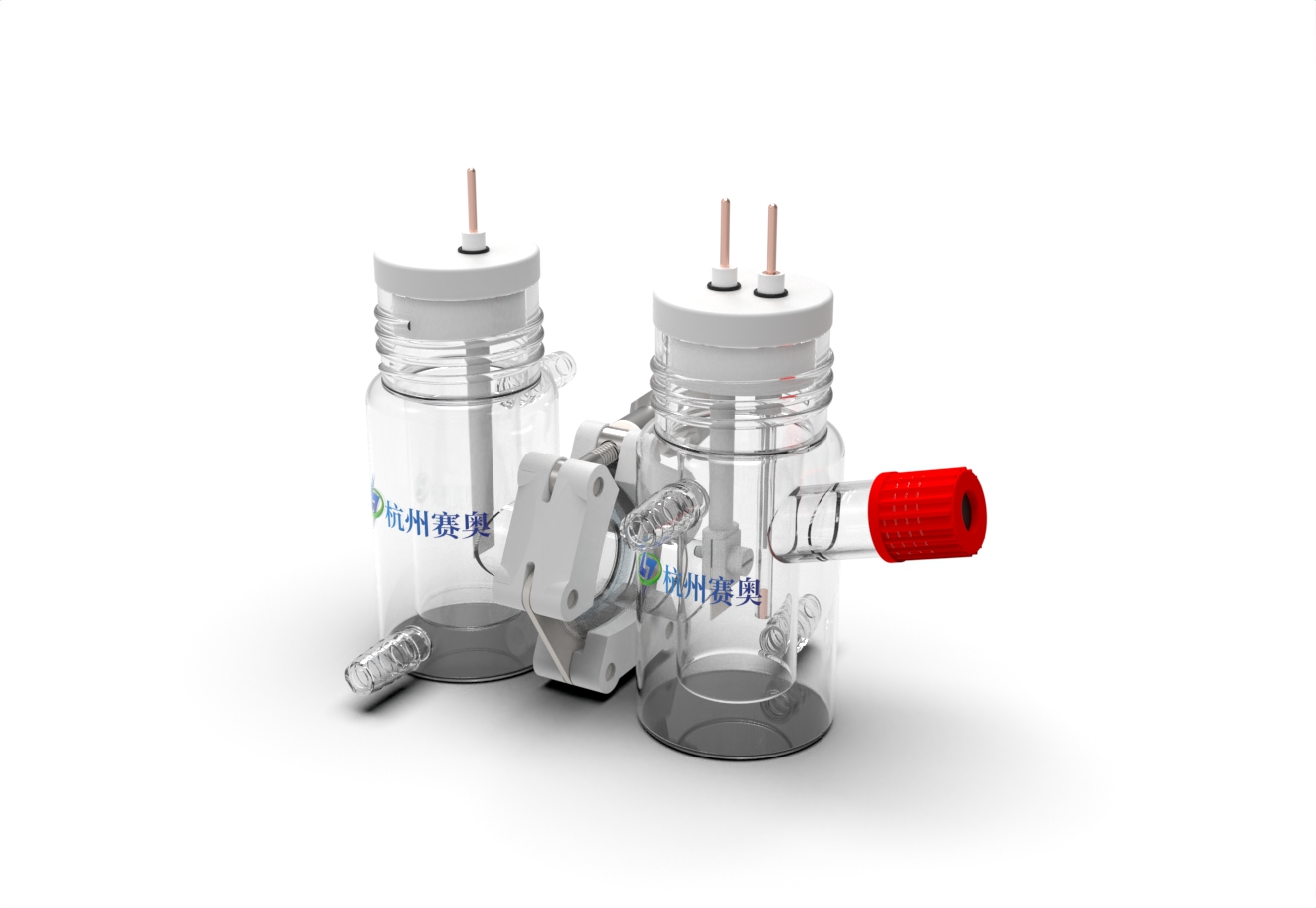

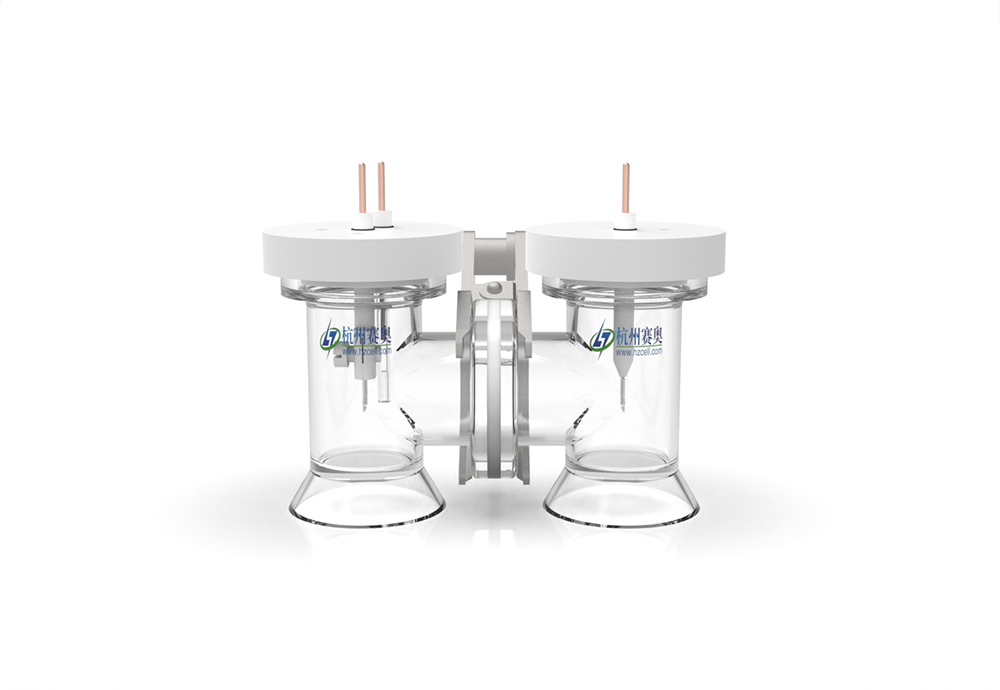

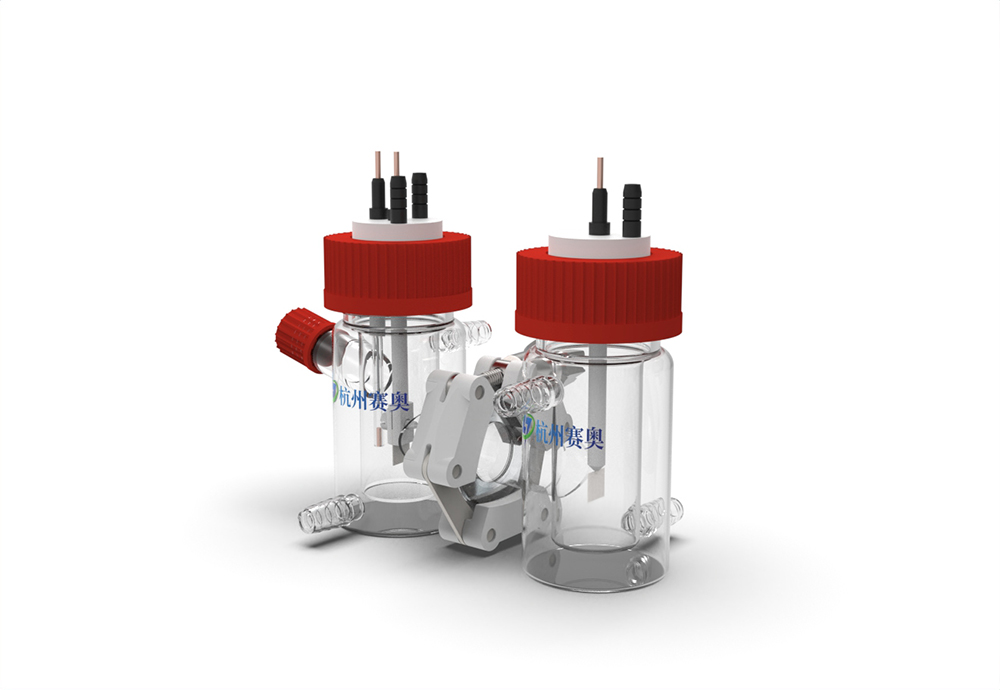

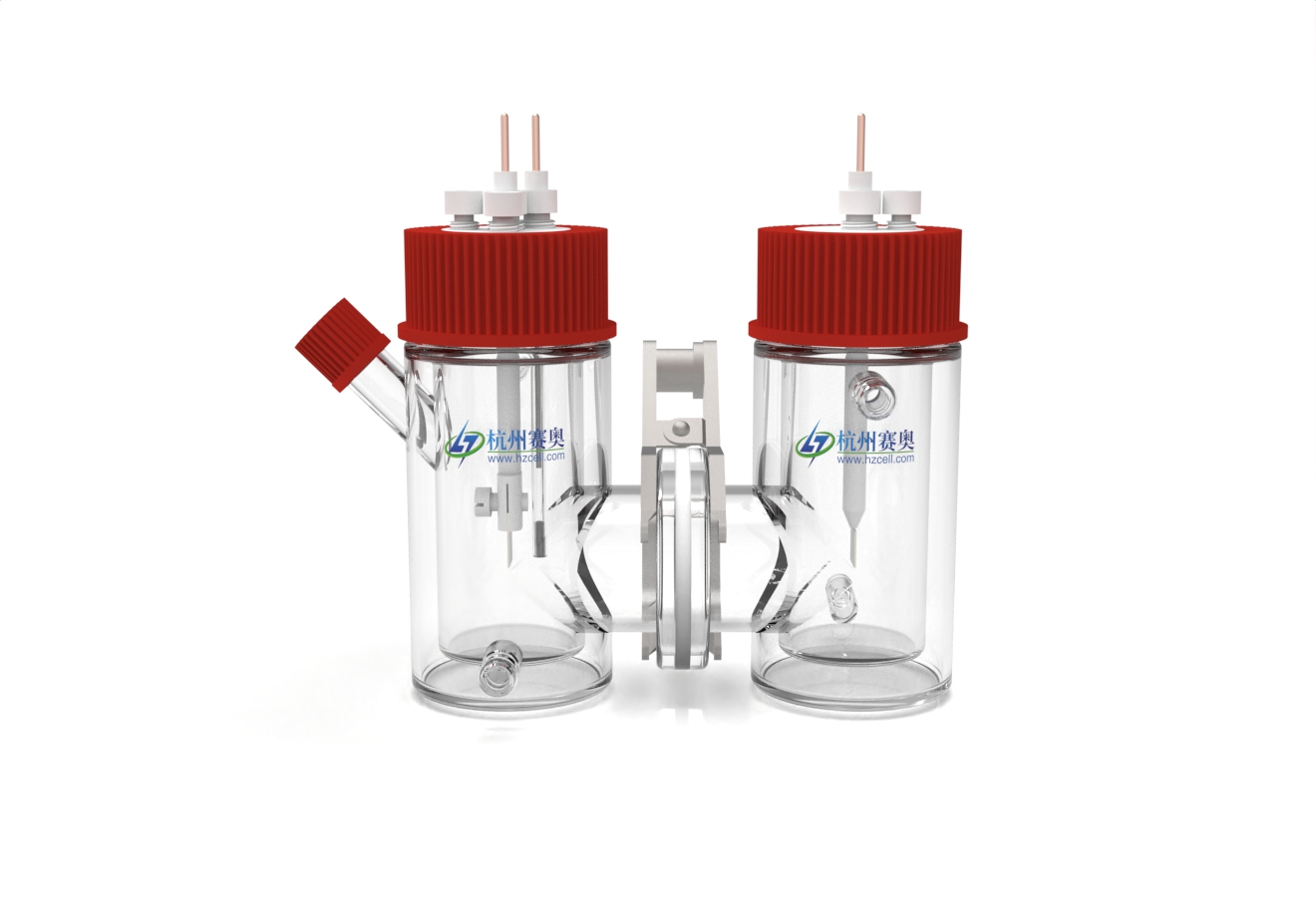

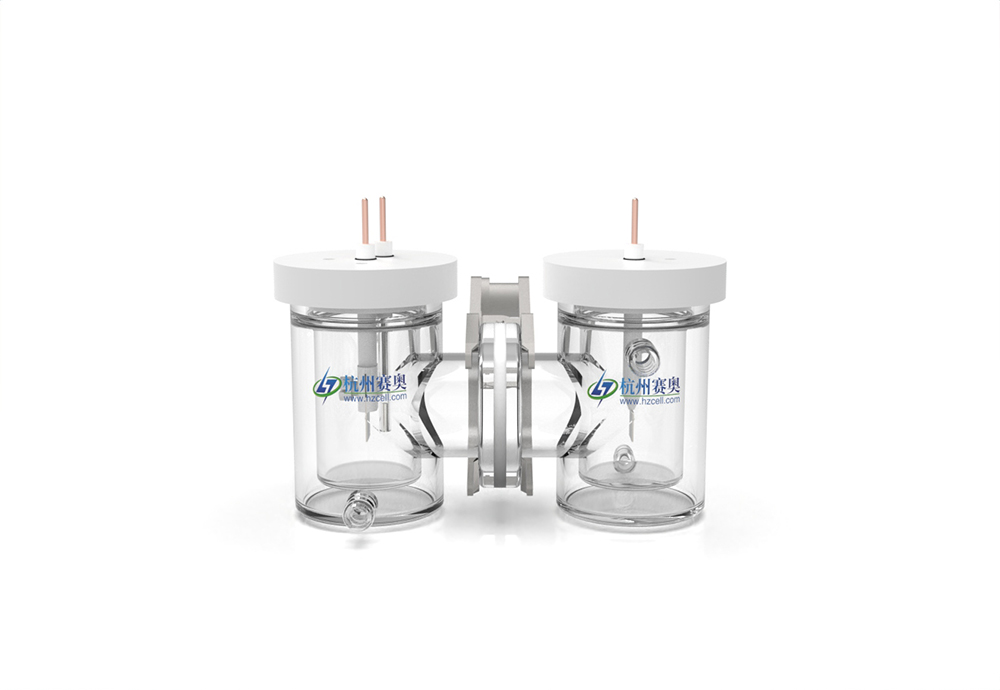

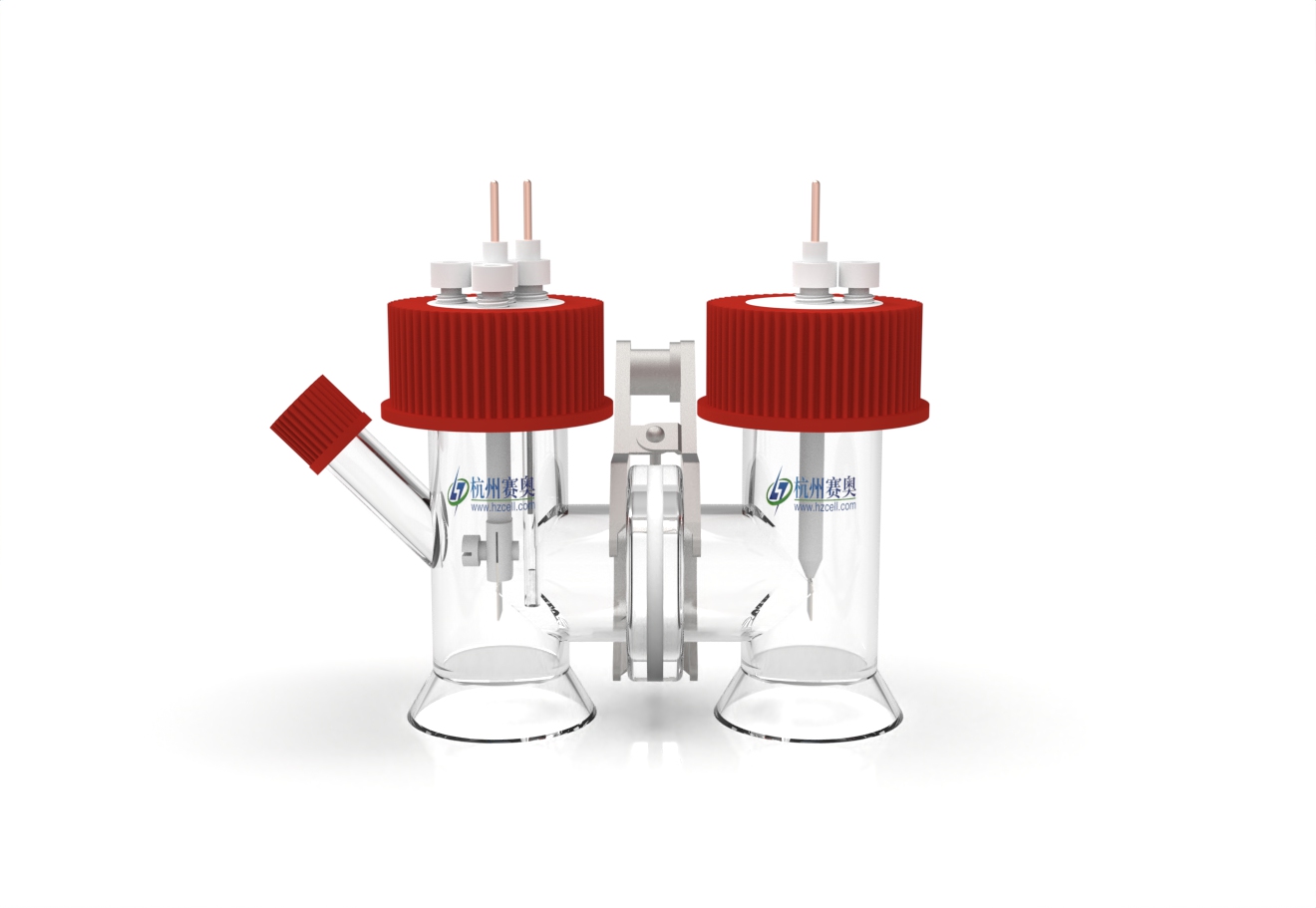

HZC-S04H-type electrolytic cell

The sealed H-type electrolytic cell model is HZC-(U)S04, where the letter "U" stands for unsealed version. The recommended liquid volumes for the working compartment and auxiliary compartment are 50 mL and 100 mL respectively. A sealed port for temperature measurement and sampling is reserved at the top of the working compartment. The two compartments are separated by DuPont Nafion 117 membrane. As a jacketed double-wall electrolytic cell, both compartments can be connected to an external circulating water system for temperature control.

Online Consultation

Product Introduction

The letter "U" in the model code stands for the unsealed version. The recommended liquid volumes for the working compartment and auxiliary compartment are 50 mL and 100 mL respectively. A sealed port for temperature measurement and sampling is reserved on the top of the working compartment. The two compartments are separated by DuPont Nafion 117 membrane. As a jacketed double-wall electrolytic cell, both compartments support external circulating water for temperature control.

Standard Accessories of Sealed H-type Cell

2 glass cell compartments, 1 sealing lock assembly, 3 silicone sealing gaskets, 3 sets of sealing stoppers & cover kits for glass compartments, 2 sealing O-rings, 3 electrode conductive posts, 1 fine-pore gas conduit, 4 gas inlet & outlet ports.

Compatible Electrodes

99.99% pure platinum counter electrodes (Pt sheet sizes: 10 × 10 × 0.2 mm, 15 × 15 × 0.2 mm), imported RVC electrode holders, platinum wire holders, Ag/AgCl reference electrodes, silver ion reference electrodes, etc.

Application

Suitable for three-electrode electrochemical tests and two-electrode electrolysis experiments, such as research on electrochemical reduction of N₂ and CO₂.

Sealing Performance Test Data

Time (min)	Pressure (mmHg)	Time (min)	Pressure (mmHg)
0	-666	15	-663
5	-664	20	-661

Note: The sealing performance test was carried out with the DPC-2B digital low vacuum pressure gauge.
