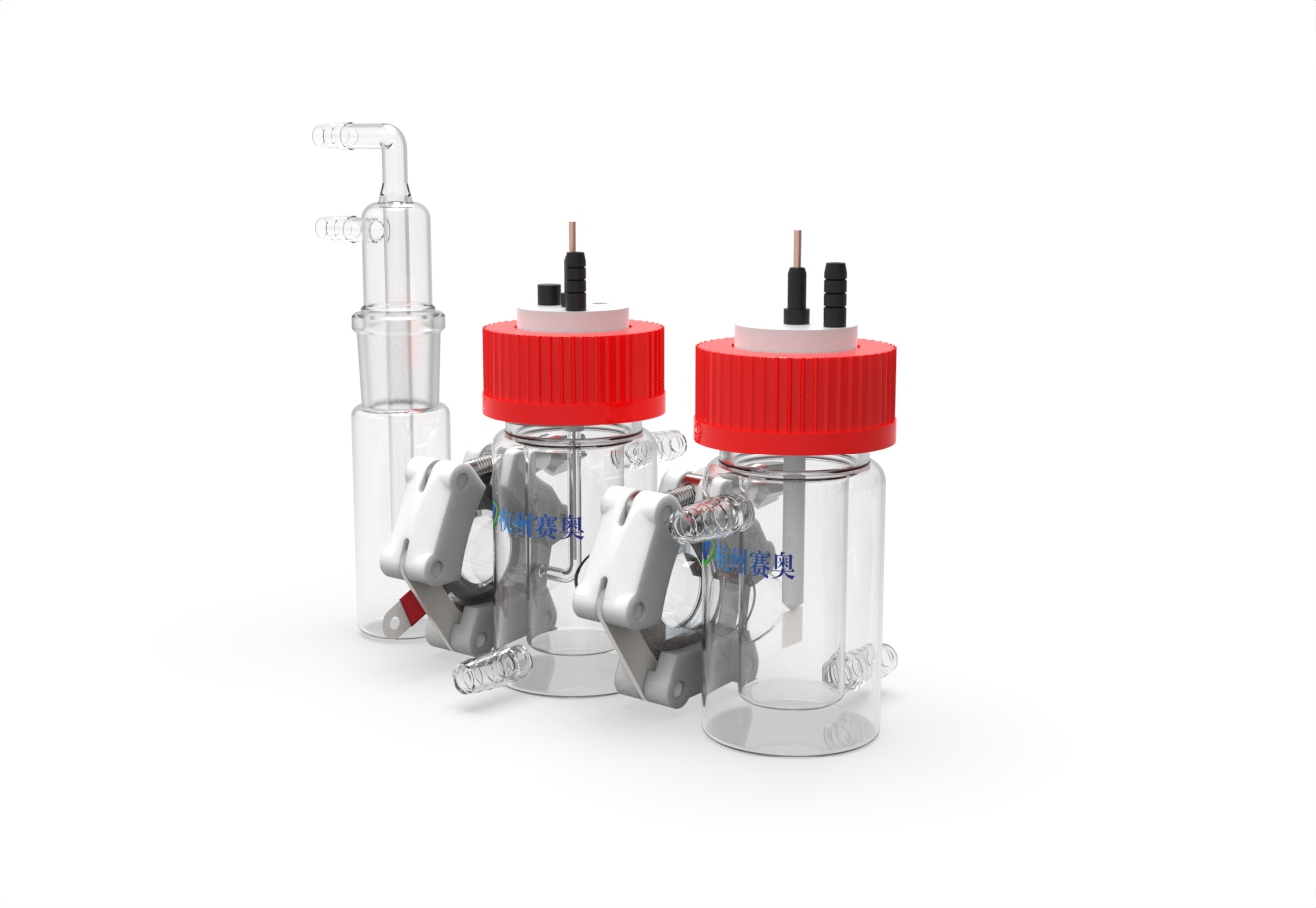

HZC-302 Gas diffusion electrolytic cell

1) The electrolytic cell can greatly reduce the thickness of the reaction diffusion layer, thereby increasing the reaction area and effectively improving the reaction speed;

(2) The electrolytic cell simulates a gas diffusion electrode in a real situation, better performing gas-liquid-solid three-phase reaction;

(3) The electrolytic cell has good airtightness. The inside of the glass bottle mouth of the electrolytic cell is sealed with a PTFE stopper and O-ring, and the outside is sealed with a plastic cap screw connection;

(4) The electrolytic cell is easy to disassemble and assemble. The working electrode is placed in the channels of the two electrolytic cells and fixed by the sealing sleeve;

(5) The electrolytic cell uses high silica glass, and the reaction appearance can be observed;

(6) The reference electrode of the electrolytic cell is close to the working electrode, which can greatly reduce the R value of the solution.
